Accessories
Dujiang Dam tube · 20×20mm
Type: DD1 / DD3
Image 1 of 3
Select the main image to view it at full size.

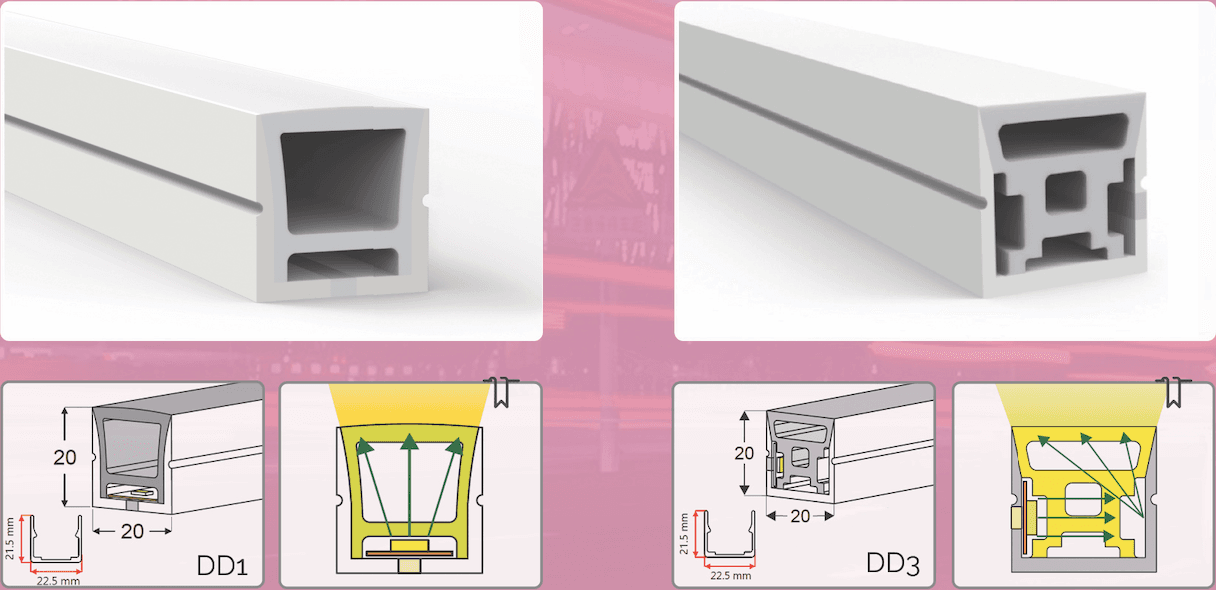

Midooc Silicone Material Flexible LED Neon Linear Tube 20*20mm
Key specifications
- Size
- 20*20mm
- Operating Voltage
- Optional
- Bending Direction
- VB ( DD1 ) / HB ( DD3 )
- Material
- Silicone
Contact our team about configuration, samples and quotations. Your product name and model will be included in the email link on the contact page.
The details
Specifications
Product information. Confirm the selected configuration before ordering.
Identification
- Product name
- Dujiang Dam Range Silicone Neon Flex Tube 20*20mm
- Type
- DD1 / DD3
Physical
- Material
- Silicone
- Size
- 20*20mm
- PCB Width
- 10/12 mm (DD1), 10 mm (DD3)
- Weight
- 257 g/m (DD1), 305 g/m (DD3)
Electrical
- Operating Voltage
- Optional
Light
- Beam Angle
- 120°
Installation
- Bending Direction
- VB ( DD1 ) / HB ( DD3 )
Product
- Item
- Dujiang Dam Range
- Type
- DD1 / DD3
Complete the system
Accessories
Discuss compatibility and the required quantities with your selected configuration.

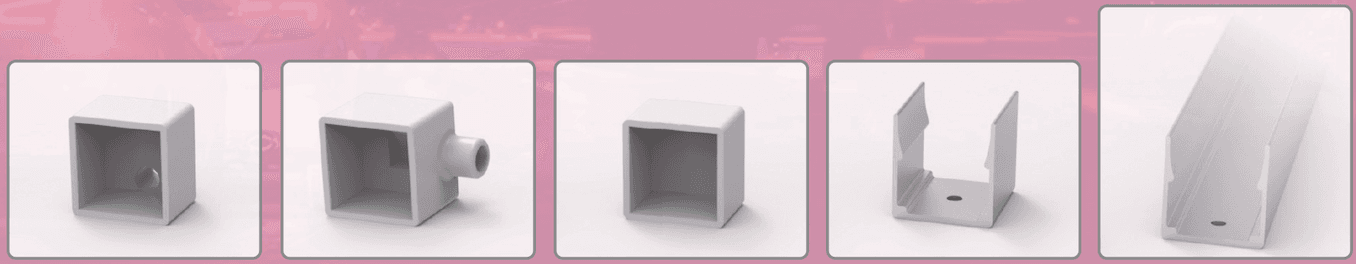

- Top End ( Direct or Side )
- End Cap
- Aluminum Clip
- Aluminum Profile
Accessories
Gardens of Suzhou tube · 12×12mm
Type GS1 / GS3
- Size
- 12*12mm
- Bending Direction
- VB
- PCB Width
- 8 mm
Accessories
Grand Canal neon flex · 70×30mm
Type GC
- Size
- 70*30mm
- Bending Direction
- VB
- PCB Width
- 30 mm
Accessories
Great Wall demo tube · 10×23mm
Type GW
- Size
- 10*23mm
- Bending Direction
- HB
- PCB Width
- 10 mm
