LED Neon Flex

360° neon flex · 24V

Catalog SKU: LH36026

Image 1 of 6

Select the main image to view it at full size.

Round silicone LED Neon Flex with 360° illumination. Voltage: DC 24V. Explore the configuration details and specification notes below.

Key specifications

Diameter: 25 mm
Input voltage: DC 24V
CCT: 2000-6400
IP rating: IP67

View all specifications

Ordering code: MN-360-90-545-30

Discuss this product

Contact our team about configuration, samples and quotations. Your product name and model will be included in the email link on the contact page.

The details

Specifications

Product information. Confirm the selected configuration before ordering.

Identification

Product name: 360 Degree Waterproof LED Neon Flex Light 24V DC Indoor or Outdoor Architectural Light
Catalog SKU: LH36026
Ordering code: MN-360-90-545-30

Physical

Diameter: 25 mm
Material: Silicone

Electrical

Input voltage: DC 24V
Power: 10 w
Power Feed: One side
Voltage: 24V

Light

CCT: 2000-6400
CRI: 90
Light Surface: Circle
Color / Dynamic: White

Installation

Max. run: 16.4ft / 5m
IP rating: IP67
Bending Direction: 360°
Cutting Unit: 5cm

Product

Warranty: 3 years
Published certification: CE, EMC, RoHS, Reach

In detail

Product description

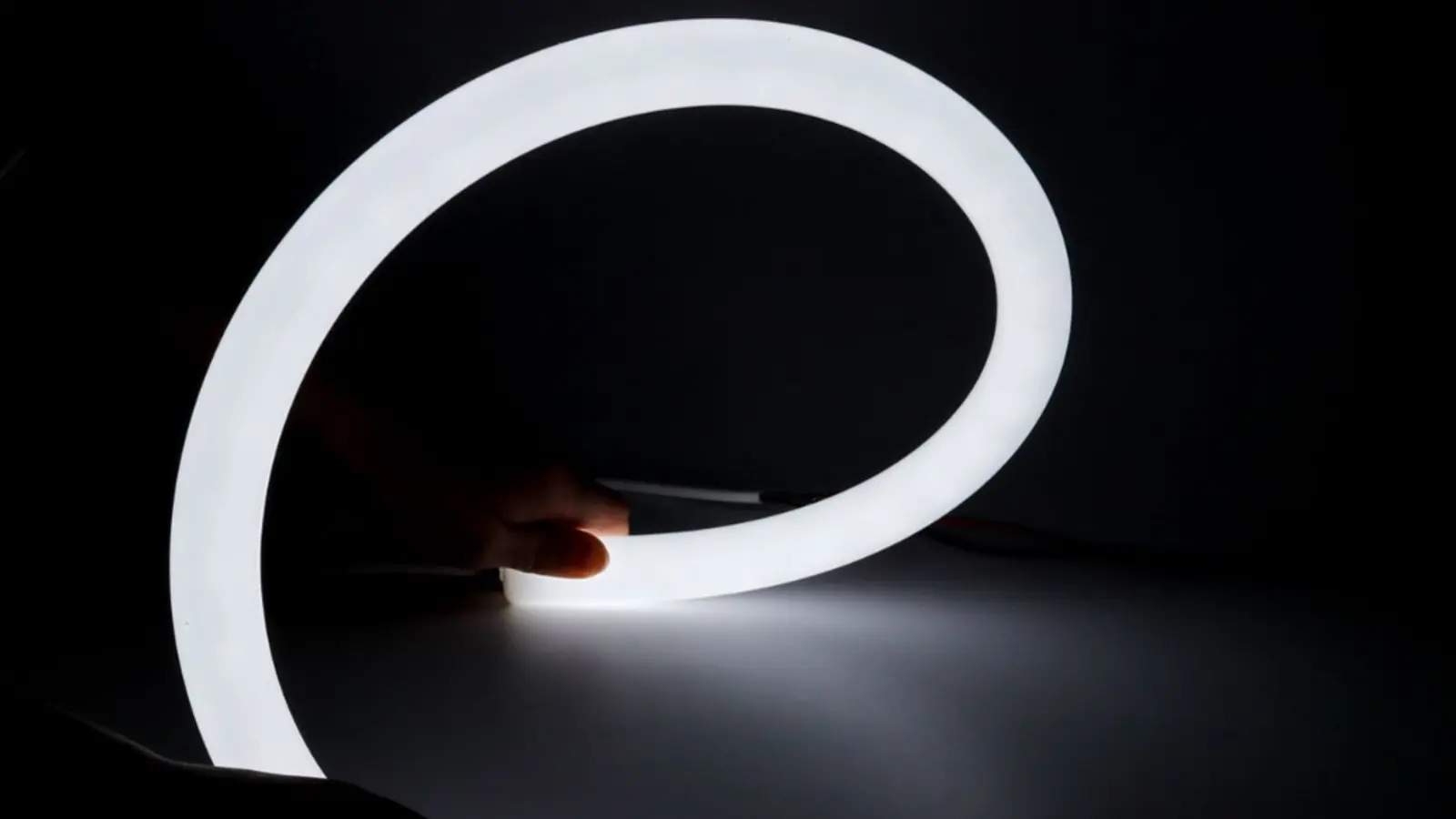

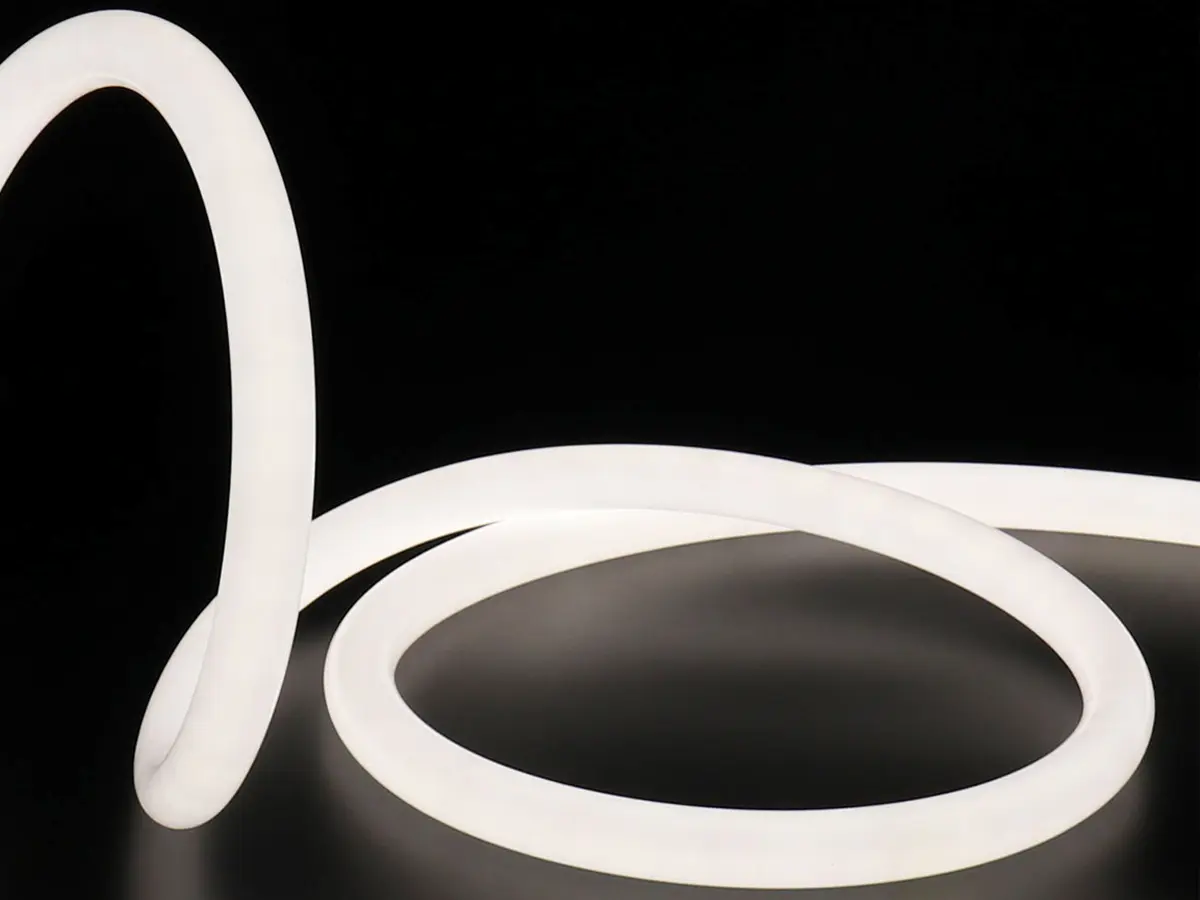

A continuous line from every angle

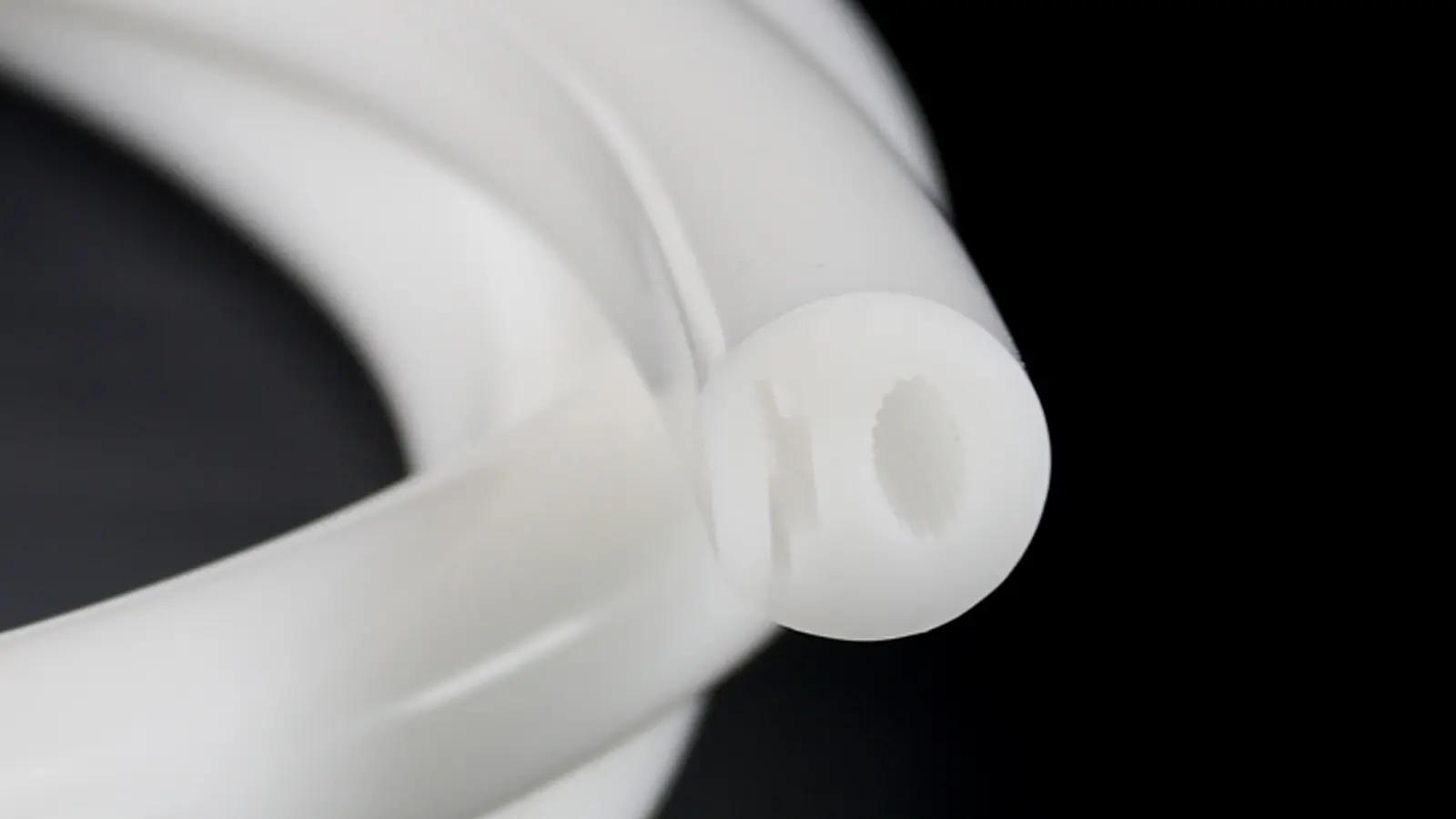

The round silicone design is described as providing 360° illumination with a continuous, dot-free appearance. The published technical information identifies a 24V DC system and a 25 mm diameter.

White light is listed in the options section. The published configuration table also includes tunable-white measurements; confirm the exact configuration and ordering code before specification.

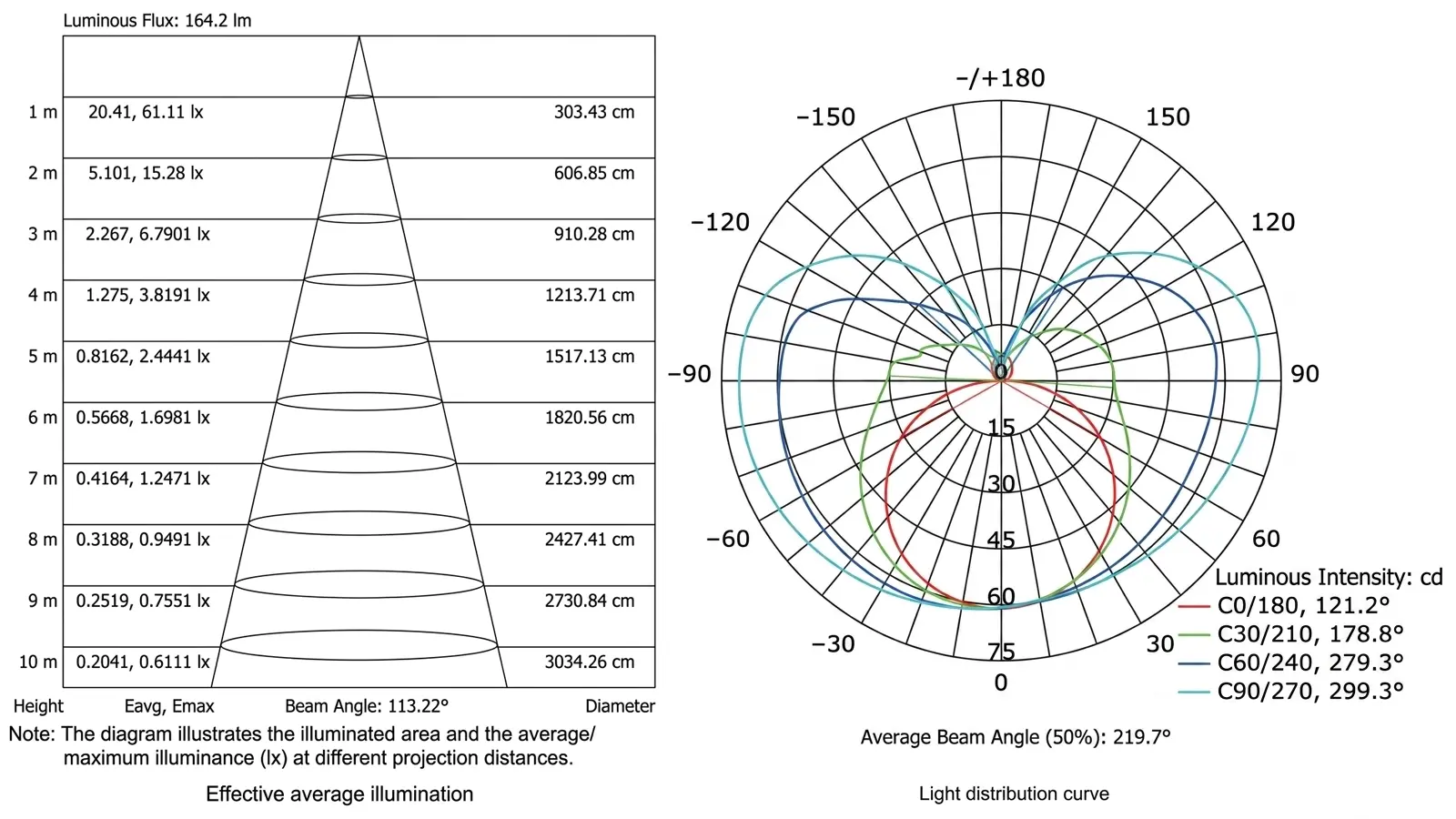

Published light-output configurations

Power（W）	CRI （Ra）	Max. productive length（M）	CCT	5w Lumens(lm/M)	10w Lumens(lm/M)
White 5w	90	5M	2400±100 2700±100 3000±100 3500±200 4000±300 5000±300 6000±300	272 276 284 306 298 309 302	525 517 529 600 556 604 586
Tunable white 5w	90	5M	2700（WW） 5000（W） 3500（WW+W）	124 127 250	258 262 517

Complete the system

Accessories

Discuss compatibility and the required quantities with your selected configuration.

Stainless Steel Channel · Model MA-003 · Stainless Steel · Profile Size 25.5mm · Compatible Size 25mm
Mounting Clip · Model MA-002 · Aluminum · Profile Size 25.5mm · Compatible Size 25mm
Mounting Clip · Model MA-001 · Plastic · Profile Size 25.5mm · Compatible Size 25mm

Before specifying

Bending needs confirmation: the catalog and headline show 200mm; the technical and light sections show 100mm. Neither value is treated here as a confirmed minimum radius.
Light output needs confirmation: the technical field says “545 lm/w”, while the configuration table reports “Lumens(lm/M)”. These measures are not interchangeable.
Operating temperature needs confirmation: the source gives “-25°F to 131°F (-25°C to 55°C)”; the lower bounds are not equivalent.
Catalog SKU LH36026 and published ordering code MN-360-90-545-30 are separate identifiers. Confirm the exact ordering configuration with Midooc.
The technical and options sections list CRI 90. CRI 95 is mentioned only in broader feature text and is not offered here as a confirmed option.
Request the applicable model-specific certificates and warranty terms for your market and configuration. The listed certification names are published product information, not downloadable verification records.
