LED Neon Flex

Ultra-thin neon strip · 6mm

Model: MF-0206-5050-300

Image 1 of 2

Select the main image to view it at full size.

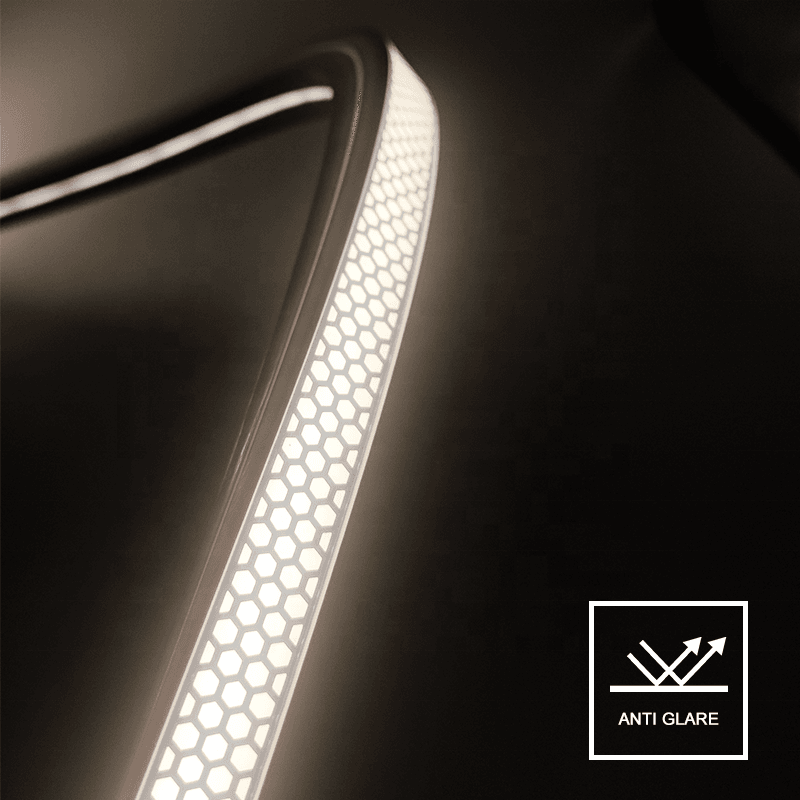

Flexible silicone LED Neon Strip, model MF-0206-5050-300. Confirm the size and output details for your selected configuration.

Key specifications

Input Voltage: DC12V / DC24V
Color Temperature (CCT): Customizable from 2200K to 10000K (Standard sample: 6000K Daylight)
IP Rating Options: Available in IP20, IP65, IP66, and IP68
Bend: Top Bend

View all specifications

Discuss this product

Contact our team about configuration, samples and quotations. Your product name and model will be included in the email link on the contact page.

The details

Specifications

Product information. Confirm the selected configuration before ordering.

Identification

Product name: Ultra-Thin 6mm Flexible LED Neon Strip
Model: MF-0206-5050-300

Physical

PCB Material: Double-Sided FPC with Copper Base
Lamp Body Material: High-Grade Silicone
Product Weight: 0.32 kg per reel

Electrical

Input Voltage: DC12V / DC24V
Dimmer Support: Yes

Light

LED Specifications: SMD 5050 LED Chip, 60 LEDs per Meter
Color Temperature (CCT): Customizable from 2200K to 10000K (Standard sample: 6000K Daylight)
Color Rendering Index (CRI): Ra ≥80
Beam Angle: 120 degrees
Lighting Solutions Service: Comprehensive support including Lighting & Circuitry Design, Dialux Evo Layout, Litepro Dlx Layout, Agi32 Layout, AutoCAD Layout, Onsite Metering, and Project Installation.
Color: Single Color

Installation

Lifespan: 50,000 Hours
Working Temperature: -20°C to +60°C
IP Rating Options: Available in IP20, IP65, IP66, and IP68
Bend: Top Bend

Product

Product Name: Ultra Thin 6mm Flexible LED Neon Strip
Model Number: MF-0206-5050-300
Place of Origin: Guangdong, China
Published certifications: Compliant with ETL, CE, RoHS, Reach, and other key international standards.
Warranty Period: 3 Years
Customization: Available in custom lengths (cuttable) and specifications.

In detail

Product description

Flexible silicone construction

Model MF-0206-5050-300 is described as using SMD 5050 LEDs and a double-sided FPC with a copper base. The product listing includes DC12V and DC24V options; confirm the selected electrical configuration.

Published dimensions and output values require clarification. See Before specifying for the exact conflicts.

Before specifying

Dimensions need confirmation: the published product name says 6mm, while the specification says “20mm x 20mm (W x H), 6mm Ultra-Thin Profile”. No single cross-section is assumed here.
Output and efficacy need confirmation: the source lists 12W per meter, 370 lumens per meter and 110 lm/W. Their conditions or variant relationship are not explained, so they are not presented as one verified operating point.
Request the applicable model-specific certificates and warranty terms for your market and configuration. The listed certification names are published product information, not downloadable verification records.
