LED Neon Flex

Outdoor neon flex · 16×16

Model: MF-1616-TOP

Image 1 of 4

Select the main image to view it at full size.

Midooc LED Neon Flex

Key specifications

Dimension (L*W*H): 5000 * 16 * 16 mm
Input Voltage: DC 24V
Color Temperature (CCT): 2700K (Warm White). 3000K/4000K/5000K/6000K/RGB/Magic RGB also available.
IP Rating: IP67 (Waterproof & Dustproof)

View all specifications

Discuss this product

Contact our team about configuration, samples and quotations. Your product name and model will be included in the email link on the contact page.

The details

Specifications

Product information. Confirm the selected configuration before ordering.

Identification

Product name: Outdoor LED Neon Flex Light 16*16
Model: MF-1616-TOP

Physical

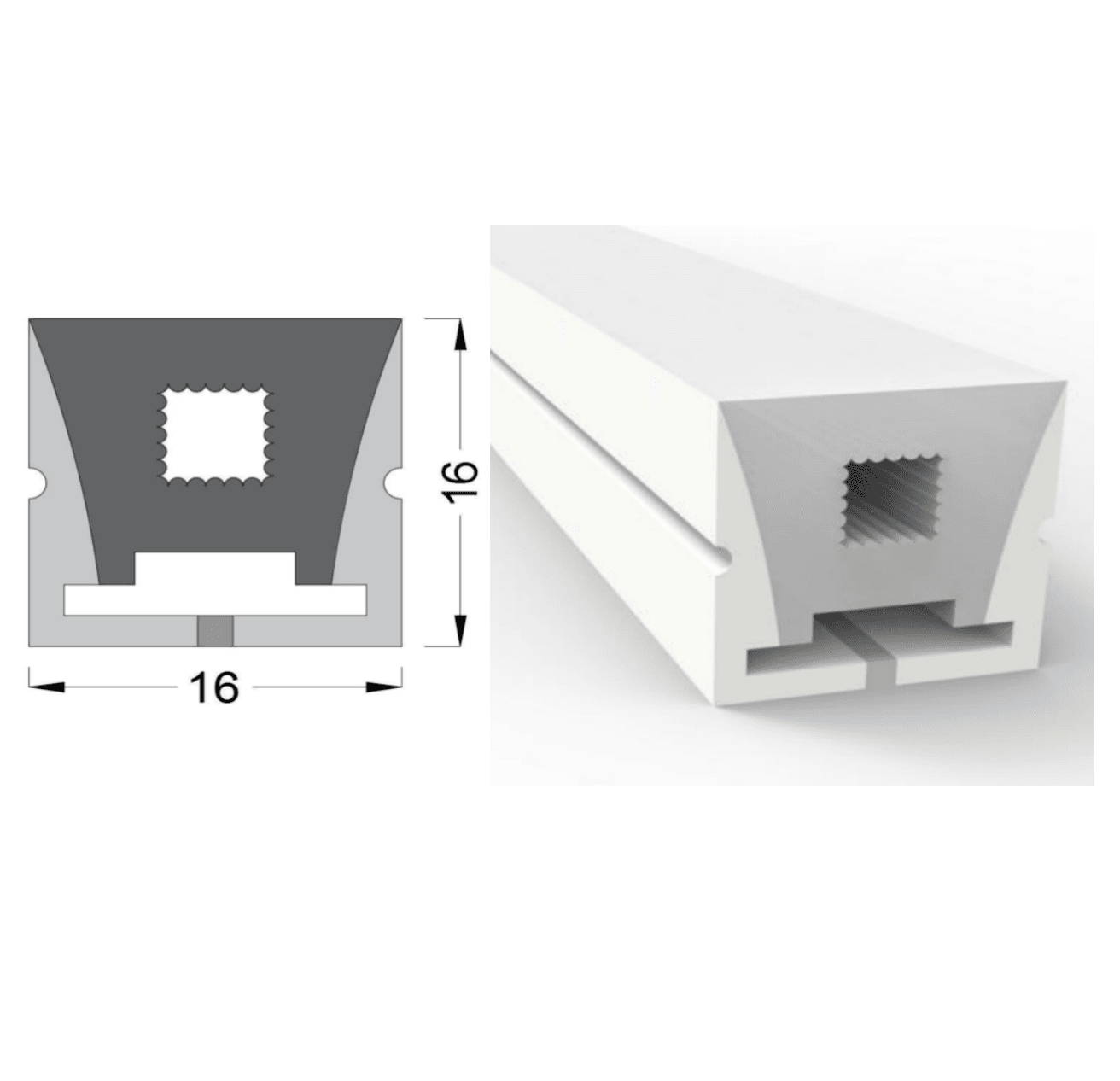

Dimension (L*W*H): 5000 * 16 * 16 mm
Shape: Rectangular
Lamp Body Material: Food-Grade Silicone
Product Weight: 0.2 kg/roll

Electrical

Input Voltage: DC 24V
Max. Power Consumption: 28.8 W/M
Typical Power: 14.4 W
Dimmer Support: Yes

Light

Light Source / LED Type: LED / SMD2835
LED Quantity: 120 LEDs/M
Color Temperature (CCT): 2700K (Warm White). 3000K/4000K/5000K/6000K/RGB/Magic RGB also available.
Color Rendering Index (Ra): ≥80
Lamp Luminous Flux: 980 lm
Lamp Luminous Efficiency: 100 lm/W
Beam Angle: 120°
Lighting Solutions Service: Lighting Design, Agi32 Layout, Project Installation Support
Color: Single Color, Pixel, RGB, RGBW, Tunable White

Installation

Lifespan: 50,000 Hours
Working Temperature: -20°C to +55°C
IP Rating: IP67 (Waterproof & Dustproof)
Cutting Length (Min.): 5 cm (for 24V systems)
Bend: Side Bend, Top Bend

Product

Product Name: TopBend 1616 LED Neon Light
Model Number: MF-1616-TOP
Item Type: Neon Lights
Origin: Guangdong, China
Warranty: 3 Years
Published certifications: ETL, CE, RoHS, Reach, EMC (and more)
OEM/ODM: Available

In detail

Product description

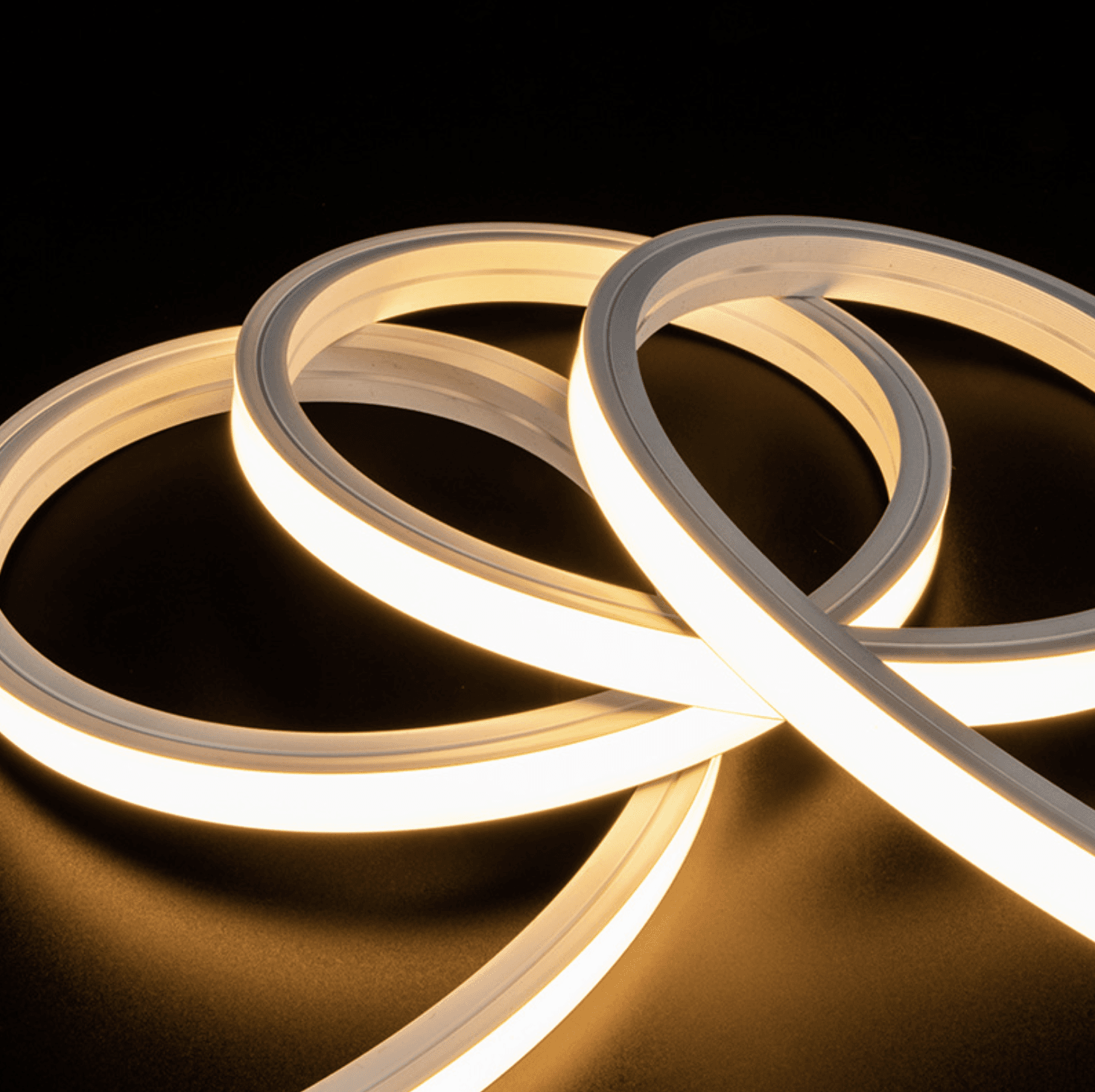

TopBend 1616

The detailed product description covers the standard MF-1616-TOP model, using a rectangular silicone profile and SMD2835 LEDs. Specifications and configuration scope are listed below.

Application ideas

Published applications include commercial signage, channel letters, storefront accents, architectural contours, landscape features, hospitality interiors, residential decoration, exhibits and event staging.

Before specifying

The detailed specifications describe the standard MF-1616-TOP model. The wider product listing also mentions Side Bend; those specifications should not be assumed to apply to a side-bend configuration.
Maximum power is published as 28.8 W/M and typical power as 14.4 W. The typical value has no per-length basis; confirm the operating conditions before calculating a system load.
Request the applicable model-specific certificates and warranty terms for your market and configuration. The listed certification names are published product information, not downloadable verification records.
